- All
- Product Name
- Product Keyword
- Product Model
- Product Summary
- Product Description
- Multi Field Search
Views: 0 Author: KIGI TEXTILE Publish Time: 08-26-2026 Origin: KIGI TEXTILE Research
Martindale abrasion test results are often requested when sourcing outdoor fabrics, workwear textiles, bags, upholstery and technical woven materials. However, a higher Martindale cycle number does not automatically mean that one fabric is better for every application.
To make a useful comparison, buyers need to understand which Martindale result is being reported, which surface is being tested and whether the fabric is uncoated, coated or laminated.

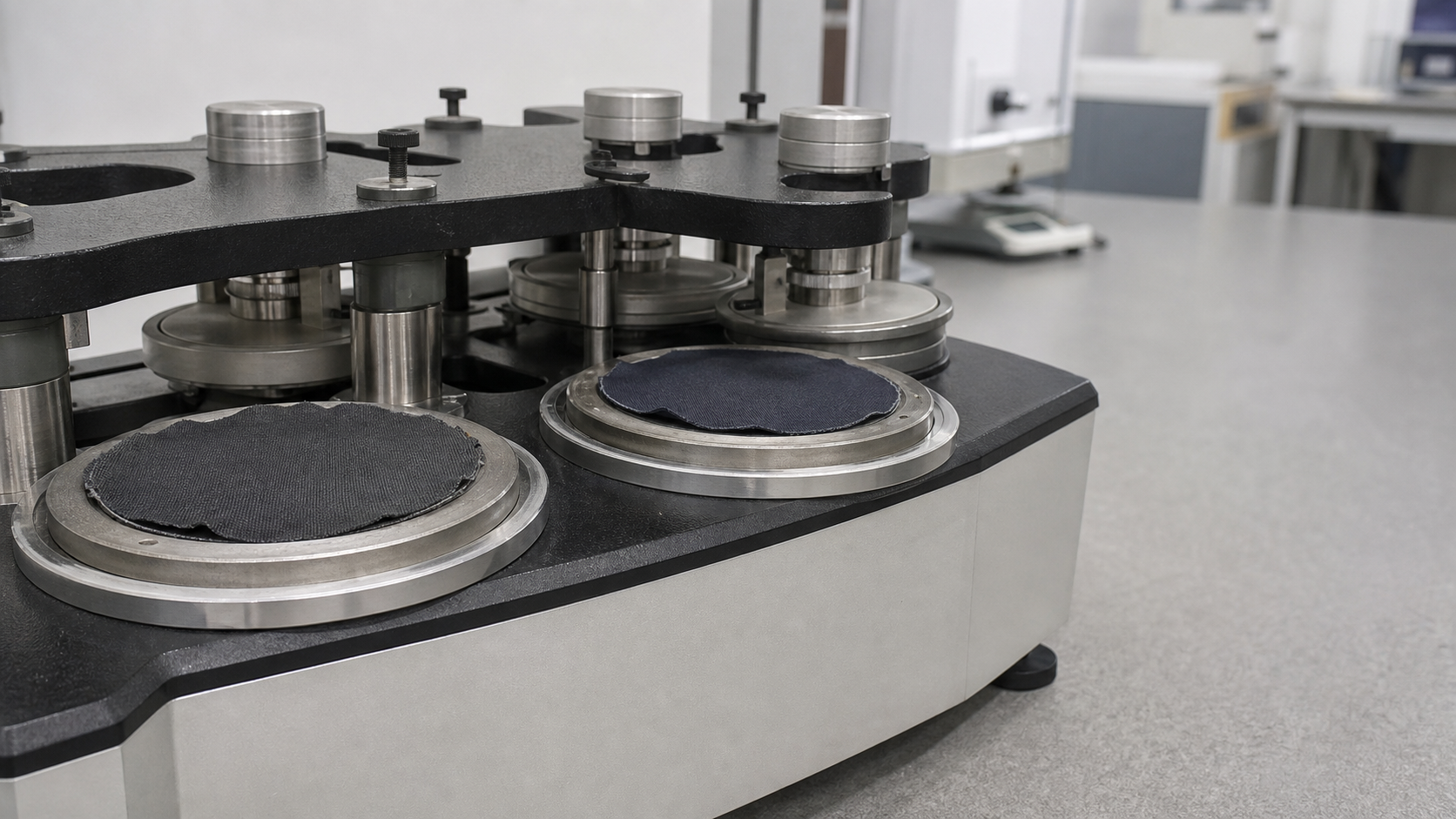

The Martindale method evaluates how a textile surface responds to repeated rubbing under controlled conditions. It is widely used to assess abrasion resistance in woven fabrics, knitted fabrics, nonwovens and many technical textiles.
Depending on the selected method, the reported result may show the number of cycles until specimen breakdown, the loss in mass, or a change in appearance. These are different measurements and should not be treated as interchangeable.
| Buyer Requirement | Relevant Test Approach | What the Result Indicates |
|---|---|---|
| Cycles to specimen breakdown | ISO 12947-2 | The test checks the fabric at defined intervals and identifies the point at which the specified breakdown end point is reached. |
| Mass loss after abrasion | ISO 12947-3 | The result measures the loss in mass after abrasion and is useful when material loss is the agreed performance indicator. |
| Appearance change | ISO 12947-4 | The fabric is assessed for visual change after abrasion, which can matter for visible apparel and furnishing surfaces. |
| Pilling, fuzzing or matting | ISO 12945-2 Modified Martindale Method | This is a pilling-related assessment. It is not the same as an abrasion-resistance or specimen-breakdown result. |
Martindale figures are useful for comparing fabrics, but they are not a universal product-life guarantee. A high result can be meaningful only when the same test method, end point, specimen preparation and relevant test conditions are used.
For an uncoated textile surface, the ISO 12947 series is commonly used. However, if the abrasion performance of a PU-coated, TPU-laminated or other coated surface needs to be evaluated, the coated-surface test method should be specified separately.
ISO 12947-2 does not apply to the coated surface of coated or laminated fabrics. For coated-surface abrasion, buyers can discuss ISO 5470-2, which covers wet and dry abrasion resistance of coated fabric surfaces using a Martindale abrader.
| Product Type | Why Abrasion Data Matters | Additional Performance to Consider |
|---|---|---|
| Hiking and trekking pants | Knees, seat and lower-leg areas can experience repeated friction during movement and outdoor use. | Stretch recovery, tear strength, water repellency and garment construction. |
| Tactical and utility workwear | Frequent kneeling, climbing, tool contact and repeated laundering can create high surface wear. | Tensile strength, tear strength, colorfastness and required protective performance. |
| Softshell jackets and pants | Outer fabric durability is important around elbows, cuffs, shoulders and pack-contact zones. | Stretch recovery, breathability, DWR performance and laminate durability where applicable. |
| Bags and luggage fabrics | Rubbing against clothing, floors, straps and surrounding equipment can damage visible fabric surfaces. | Tear strength, coating durability, puncture resistance and seam performance. |
| Tents, covers and technical equipment | Abrasion can be relevant where the fabric contacts equipment, ground surfaces or repeated folding areas. | Tear strength, hydrostatic resistance, UV exposure and coating or lamination performance. |
| Buyer Situation | What to Focus On | Recommended Request |
|---|---|---|
| Premium hiking pants or tactical workwear | High-wear zones such as knees, seat and lower legs. | Request Martindale abrasion data together with tear strength, tensile strength and stretch recovery. |
| Softshell jackets and stretch outerwear | Balance abrasion resistance, comfort and recovery. | Test the face fabric and confirm whether the fabric contains spandex, coating or lamination that may affect performance. |
| Bags, luggage and equipment covers | Surface wear, tear resistance and coating durability. | Specify the exposed surface to be tested and request additional tear and coating-abrasion data where needed. |
| PU-coated or TPU-laminated fabrics | The durability of the coated or laminated surface. | Do not request only ISO 12947-2. Discuss ISO 5470-2 or another suitable coated-surface abrasion method. |
| Cost-sensitive apparel programs | Fit-for-purpose performance instead of an unnecessarily high cycle target. | Define the end use first, then agree the test method, reporting end point and acceptance criteria with the supplier. |
Instead of writing only “Martindale test required,” provide a clear and comparable request. A complete inquiry may include:
Fiber selection is important, but it does not determine Martindale performance by itself. A fabric’s abrasion resistance can change significantly depending on yarn denier, weave density, yarn type, fabric weight, surface finish, coating, lamination and stretch construction.
For example, nylon is often selected for abrasion-focused outdoor and workwear applications, while polyester can provide a cost-efficient and stable construction for many technical uses. The final selection should be based on tested finished fabric, not only on the fiber name.
There is no single “good” Martindale result for every fabric. The suitable requirement depends on the intended use, the tested surface, the selected ISO method and the performance level agreed for the product.
Not automatically. Abrasion resistance and pilling are different properties. ISO 12945-2 uses a modified Martindale method to assess pilling, fuzzing and matting.
ISO 12947-2 is not intended for evaluating the abrasion behavior of a coated surface. For coated-surface abrasion, discuss ISO 5470-2 or another method suitable for the requested surface and end use.
No single test can predict complete product life. Martindale data is one useful control point, but garment durability also depends on seams, pattern design, reinforcements, washing, environmental exposure and real wearing conditions.
Tell KIGI TEXTILE your end use, fiber requirement, fabric weight, surface finish and target test method. We can help you identify a suitable woven fabric construction and prepare the right testing discussion for your project.
Request Fabric Samples
