900D Flame-Retardant Polyester Oxford Fabric with PU Coating

900D Flame-Retardant Polyester Oxford Fabric with PU Coating

Applications

What is the hydrostatic head / waterproof rating of this fabric?                                                                                                             With PU coating on the back side, the fabric achieves a hydrostatic head of [≥ 8000 mmH₂O / ≥ 10000 mmH₂O / please confirm]. This makes it suitable for outdoor tents, event canopies, and heavy-duty bags exposed to rain.

Is this fabric made from recycled polyester? Do you have GRS certification?

Yes, the fabric is made from 100% recycled polyester (rPET)

What are the typical applications for this fabric?

• Emergency relief tents and humanitarian shelters

• Military field tents and tactical covers

• Event canopies, exhibition tents, and industrial storage

• Fire-resistant tool bags, equipment bags, and duffel bags

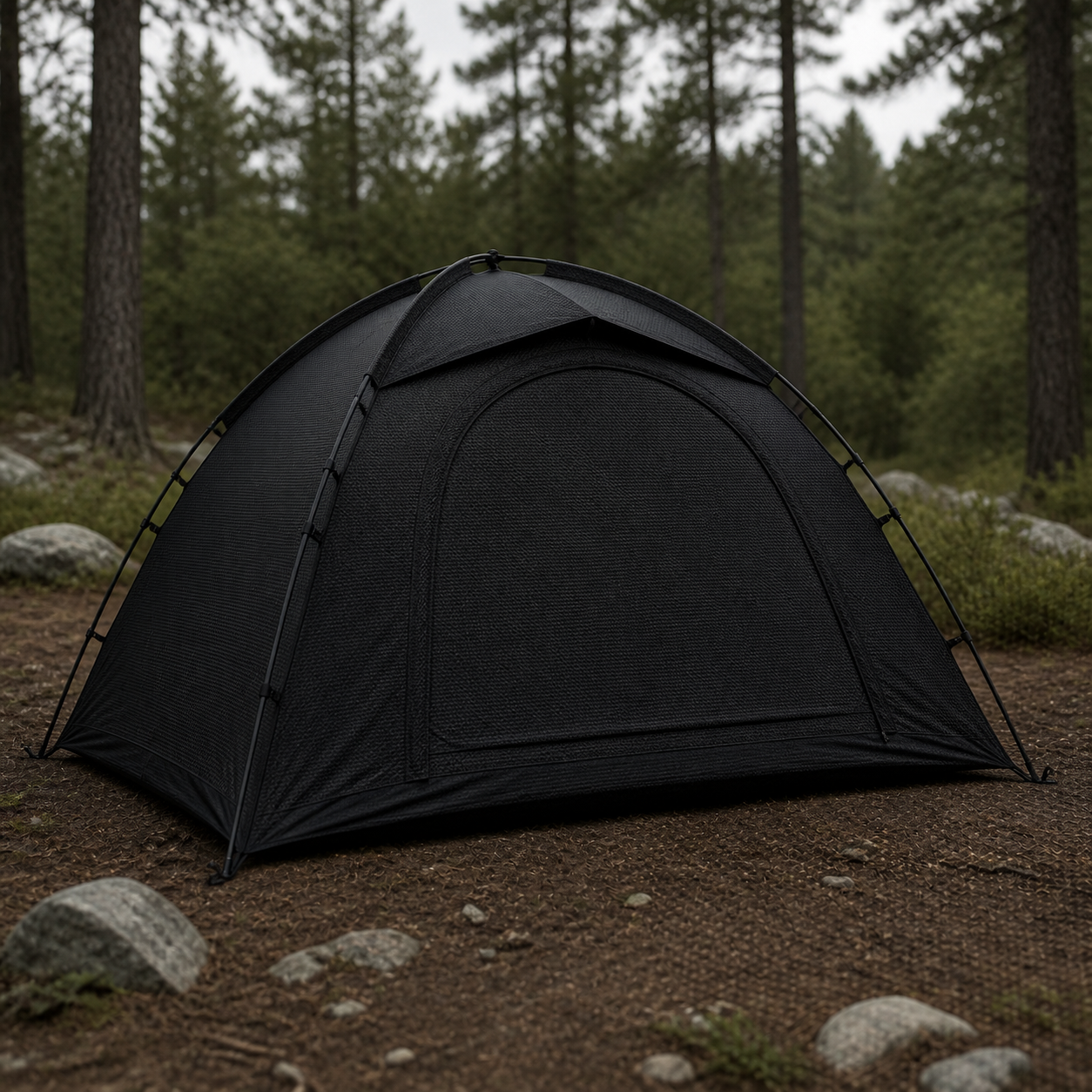

• Camping tents for fire-prone areas

How do I verify the flame retardant performance before placing a bulk order?

We can provide:

• A copy of the existing test report

• A small sample for your own testing

• Pre-shipment inspection by a third-party lab at your request

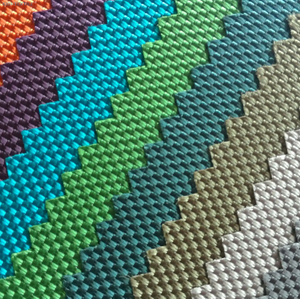

What is 1680D flame-retardant polyester fabric?

1680D flame-retardant polyester fabric is a heavy-duty woven material designed to combine high abrasion resistance, dimensional stability and reduced flame propagation. The “1680D” designation refers to the nominal linear density of the yarn rather than the finished fabric weight. A flame-retardant treatment or suitable flame-retardant coating can be added according to the intended application and required test method.

.What is the typical weight and width of 1680D FR Oxford fabric?

The final specification depends on the yarn construction, weaving density, coating and finishing process. Common finished weights are approximately 400–600 gsm, while commonly supplied widths include 145 cm, 150 cm and 152 cm. Custom weight and usable width can be discussed according to the buyer’s application.

Is 1680D polyester fabric woven with single-ply or double-ply yarn?

Both constructions may be available. Some 1680D fabrics use nominal 1680-denier yarn, while others use multiple yarns or a basket-weave construction to achieve the required appearance and strength. Buyers should confirm yarn denier, yarn ply, weave structure, warp and weft density instead of relying only on the “1680D” product name.

How abrasion-resistant and tear-resistant is 1680D Oxford fabric?

1680D Oxford fabric is generally selected for demanding applications because its heavy yarn and dense woven construction offer better abrasion and tear resistance than lightweight Oxford fabrics. Actual performance varies with the yarn, density, coating and finishing process. Abrasion, tensile and tear-resistance test results can be provided or arranged for an agreed production specification.

Which flame-retardant standards can 1680D polyester fabric meet?

Testing may be developed around standards such as ASTM D6413/D6413M, NFPA 701 or CPAI-84, depending on the final application. These methods are not interchangeable, and each evaluates the material under different test conditions. The applicable standard should therefore be confirmed before sampling and production.

Final compliance must be supported by a laboratory report for the exact fabric construction, color, coating and finishing combination supplied.
